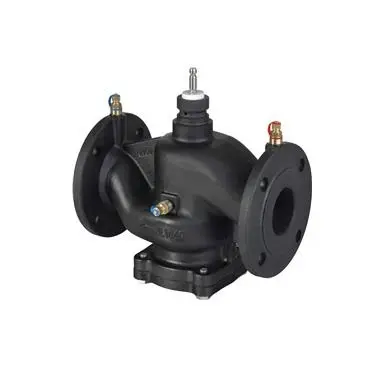

VPF44.65F35 Pressure independent control valve (PICV), PN16, DN65, with flanged connections

VPF44.65F35 Pressure independent control valve (PICV), PN16, DN65, with flanged connections

⚙️ Provides precise water flow control in HVAC heating and cooling systems, maintaining stable flow despite pressure fluctuations to improve operating efficiency and energy savings.

✅ DN65 size, suitable for DN65 piping systems.

✅ PN16 pressure rating, up to 16 bar.

✅ Adjustable water flow range from 6.4 to 37.7 m³/h.

✅ Integrated differential pressure regulator for stable water flow.

✅ Durable gray cast iron body for long service life.

✅ Equipped with three pressure test points for system monitoring.

✅ Operating water temperature range from 1°C to 120°C.

✅ Flanged connections for secure installation.

✅ Suitable for chilled water systems, central heating, and air handling units.

✅ Compatible with electric actuators for automated control, ordered separately.

🏢 Precise control, stable flow, and efficient performance for HVAC applications!

SR 5,226.66 SR 5,226.66 (Tax excluded)

  • DN Size
Add to cart
Documents
A6V14379274_Datasheet for PICV PN16_PN25 with flanged connecti_en (1).pdf

Specifications

DN Size 65 mm
