VPI46.32F4Q Combi valves, PN25, DN32, 550…4000 l/h, pressure test points

VPI46.32F4Q Combi valves, PN25, DN32, 550…4000 l/h, pressure test points

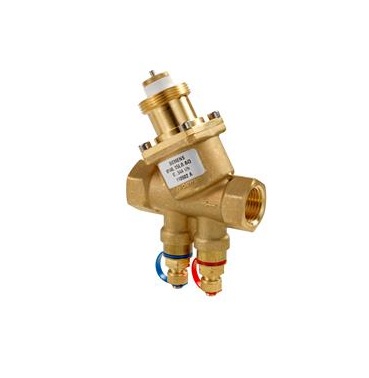

💧 The Siemens VPI46.32F4Q Pressure Independent Control Valve (PICV) provides precise water flow control and automatic hydraulic balancing in HVAC heating and cooling systems, featuring an integrated differential pressure controller for stable and efficient performance.

✅ DN32 size with PN25 (25 bar) pressure rating.

✅ Adjustable flow range from 550 to 4000 l/h.

✅ Equipped with two pressure test points (P+ / P-) for differential pressure measurement.

✅ Operating medium temperature range from 1°C to 120°C.

✅ Dezincification-resistant brass (DZR) body for durability and corrosion resistance.

✅ Rp 1¼-inch internally threaded connections for convenient installation.

✅ Compatible with suitable Siemens electrothermal and electromotive actuators.

🏢 Precise control, automatic balancing, and reliable HVAC performance!

SR 703.38 SR 703.38 (Tax excluded)

  • DN Size
Add to cart
Documents
A6V10343683_Combi valves PN25 VVP46.. VPI46.._en.pdf

Specifications

DN Size 32 mm
